14*17inch Fuji Film Medical Dry Imaging X Ray Films DI-HL for Fuji Laser Printer DRY PIX4000, Smart6000, Edge7000, drypix8000
This product substrate is a blue film base，and the two sides are respectively covered with an imaging layer and a protective layer. This film is suitable for printing medical images stored in digital form after being processed by a computer,The output can truly reproduce various medical images processed by the computer，eliminating the need for traditional fixing and processing procedures, and eliminating the environmental pollution caused by the waste liquid in processing, This film has a low fog and a high sharpness , high max density, bright tone and easy to use, it can be directly used for printing of medical imaging x ray printers on the market.
Categories：
Medical Laser X Ray Film
This product substrate is a blue film base，and the two sides are respectively covered with an imaging layer and a protective layer. This film is suitable for printing medical images stored in digital form after being processed by a computer,The output can truly reproduce various medical images processed by the computer，eliminating the need for traditional fixing and processing procedures, and eliminating the environmental pollution caused by the waste liquid in processing, This film has a low fog and a high sharpness , high max density, bright tone and easy to use, it can be directly used for printing of medical imaging x ray printers on the market.
Film parameters
1.Film material：It is composed of PET base coated with silver salt and protective layer.
2.Printing technology and principle：directly digital imaging technology, one time one image, infinitely add washing multi-drug or other printing materials.
3.The minimum gray fog density of the film : ≤0.06D
4.Maximum optical density of the film：≥3.50D
| Item Name | Model Type | Size | Sheets/Box | Boxes/Carton | |
| Medical Laser Film | JG-B | 8×10in | 20×25cm | 150 | 5 |
| 10×12in | 25×30cm | 150 | 5 | ||
| 10×14in | 26×36cm | 150 | 5 | ||
| 14×17in | 35×43cm | 100 | 5 |

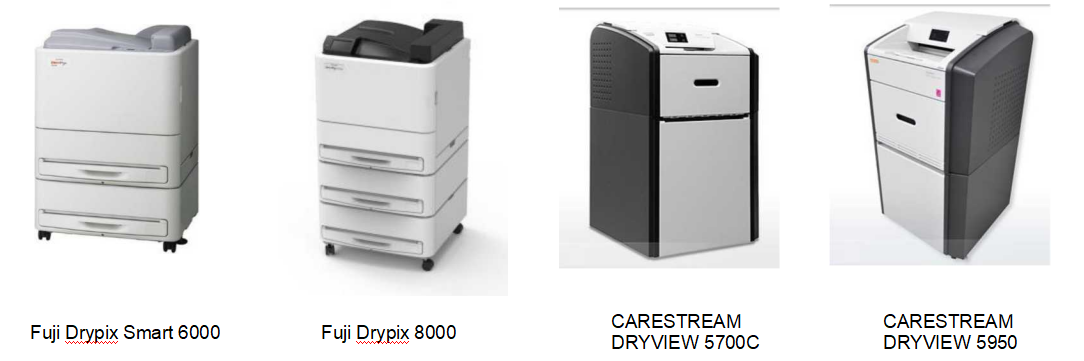

Compatible printer
Fuji film DI-HL Laser X-ray Film for DryPix 4000/Smart 6000/Prima/Plus 7000/Edge 8000
Handling and Storage Precautions
1.Handling and storing unopened film packs
(1)The laser film is used exclusively for fuji dry laser imager and cannot be used in other devices or systems.
(2)Be sure to store an unopened film pack in a cool place protected against radiations and X-rays.
2.Handling and storing opened film packs
(1) Be sure to store an opened film pack in a cool, dry and dark place protected against radiations and X-rays the same as with conventional wet film.
Storage temperatures: 10 to 25 ℃(50 to 77 F) Relative humidity: 30 to 60 % RH
(2)Do not take unused film out of the film tray once it has been loaded in the laser imager x-ray, nor add film to the film tray before using the remaining film.
This will result in malfunction or failure of the imagers.
(3) Unused film should be sealed in the special bag. Do not touch unused film with bare hands. This may cause artifacts appearing on the recorded image.
3.Handling and storing recorded film
(1) Do not touch the emulsion side of the recorded fim with bare hands. It may result a finger print marks on the film.
(2) Contact with water, alcohol, developer, or salt may result in artifacts appearing on the surface of the film, especially under high humidity conditions.
(3) Do not store recorded film with the emulsion surface in contact with other film' s emulsion side.
(4) Store recorded film in a cool, dry, and dark place. After being stored in higher temperature and humidity than conditions described in item 2-(1), optical density of recorded images may change. Long-term storage at high temperature, high humidity, and/or daylight conditions, such as in a car or in room during summer, may cause discoloration.
