Inkjet Printer MP-5680 For DR, CT, MRI film imaging printing x ray department.
This printer is modified from Canon printer, specialized for printing inkjet blue imaging x ray film. This printer has high advantages. 1. Large catridge design. 2. Cost effective, well qualified. 3 No inkjet printer gear marks 4. Continuous printing 20000sheets, no after sale, stability.
Categories：
Inkjet Printer

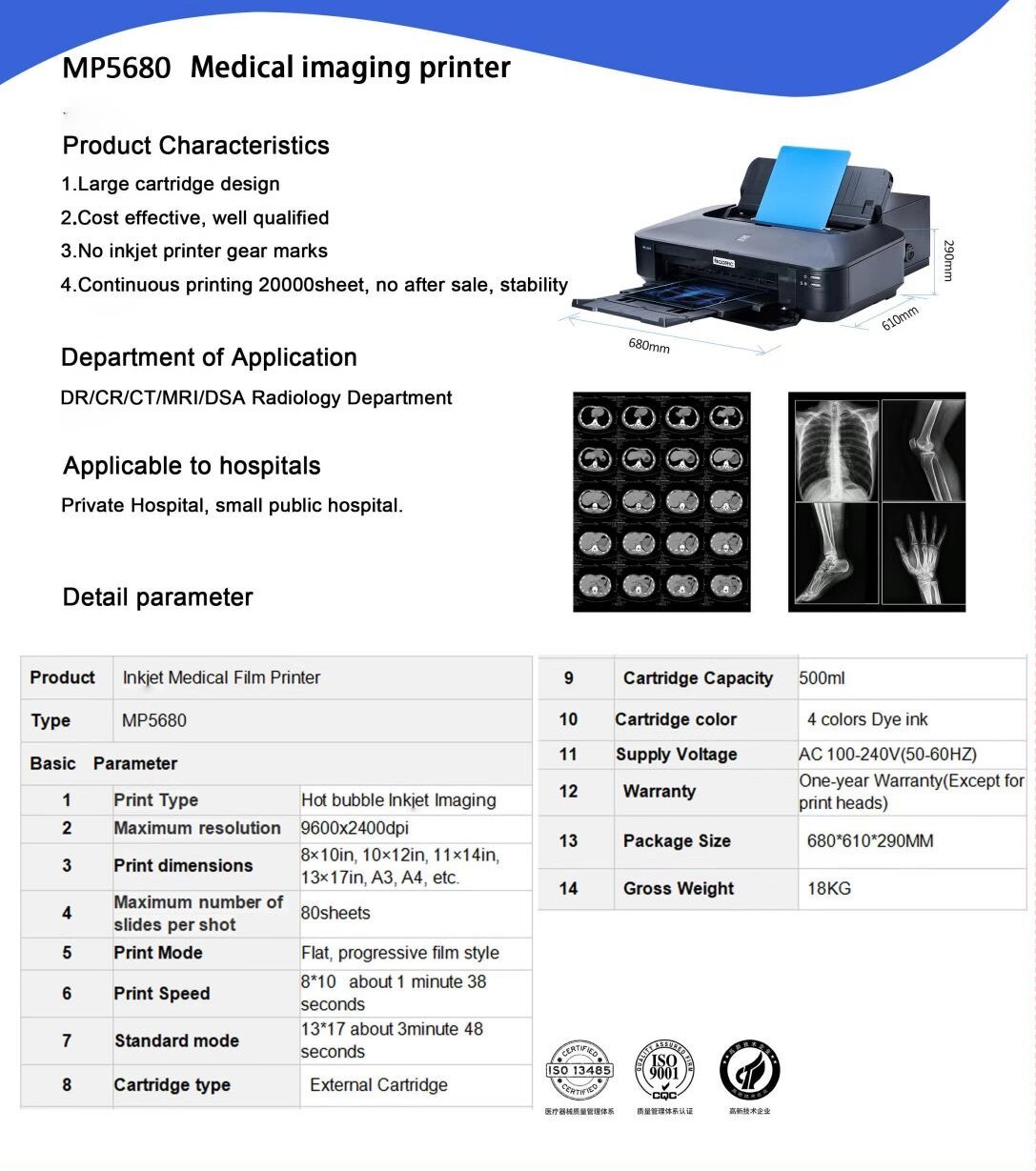

MP5680 Main technical parameters | |
Product Models | MP5680 |
Print Type | Inkjet |
Network Printing | Not support network printing |
Interface type | USB |
Working power supply | AC 100-240V, 50/60HZ |
Input power | 20VA |
Working environment | Room temperature |
Security type | Class one |
Consumables | External four-color cartridge |
Cartridge capacity | 500ml per color |
Print head model | QY6-0086 |
Print boundaries | Print boundaries can vary with media size |
Media Type | Blue or transparent PET substrate film |
Media Size | The Maximum printable film size 13*17 |
Printing printable size | 8*10, 10*12, 11*14, 13*17, A4 ,A3 |
Printing resolution(dpi) | 9600* (horizontal) x 2400 (vertical) |
Printing speed | 0.5~3.6minute |
Home page printing speed | 13*17inch Home page printing time 195seconds |
Other page printing speed | 13*17inch continuous printing 22sheets/hour 8*10 inch continuous printing 60sheets/hour |
Single Interface | Dicom Protocol data format |
Scope of application | Used to produce an X-ray image of a film |
Energy efficiency record number | QX17253V03 |
CCCCertification number | 201301115 |
Storage and transportation | Temperature: -25+40℃, Humidity:20-93% Please Keep the equipment flat and not upside down during transportation. |
Installation instructions | Refer to the installation instructions in detail |
The printer Size | 580*515*170mm (Packing Carton) 680*610*290mm |
